3980kn servo motor injection molding machine for garbage bin

这里可以自定义设置
3980kn servo motor injection molding machine for garbage bin
B站不支持收货地址
B站不支持库存规格
Model NO.
HI-SV398 IMM
MOQ
1 SET
Payment
T/T or Negotiable
Place of Origin
Ningbo,China
Delivery Time
40-45 days after receiving deposit
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置
这里可以自定义设置

DESCRIPTION

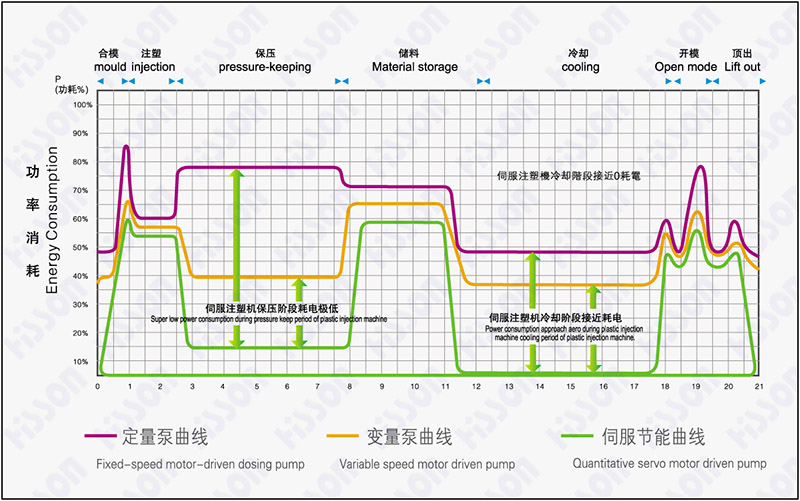

HI-SV398 Servo motor system injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.

Detailed information
Machine main components adopt world famous brand, e.g.
Controller:TECHMATION (TAIWAN)
Low voltage contactor:SCHNEIDER(FRANCE)
Low voltage air switch:SCHNEIDER(FRANCE)
Proportional Valve:Dofluid HNC(TAIWAN)
Oil pump:VICKERS(USA)
Directional Valve:VICKERS(USA)
Induction travel switch:OMORON (JAPAN)
Inductor potentiometer:FORT(USA)
Servo system components
PLC:   Taiwan TECHMATION controller Driver:Taiwan Delta
Oil pump:Japan SumitomoServo motor:Italy PHASE
这里可以自定义设置

product  specifications

HI-SV398Optional Parameters
TECHNICAL PARAMETER TABLEUnitABC
INJECTION UNIT
SCREW DIAMETERmm707580
SCREW L/D RATIOL/D21.42018.8
SHOT VOLUME(THEORETICAL)cm3129314851689
INJECTION WEIGHT(PS)g117713511537
INJECTION PRESSUREMpa199173152
INJECTION RATEg/s366395446
PLASTICIZING CAPACITYg/s606570
SCREW SPEEDrpm0-165
CLAMPING UNIT
CLAMP FORCEkN3980
OPEN STROKEmm700
MAX.MOULD HEIGHTmm800
MIN.MOULD HEIGHTmm280
SPACE BETWEEN TIE BARSmm720×720 (W×H)
EJECTOR FORCEKN110
EJECTOR STROKEmm160
GENEREL
EJECTOR NUMBERn13
PUMP PRESSUREMpa16
PUMP MOTOR POWERKW37
HEATING POWERKW19.90
MACHINE DIMENSIONm7.1×1.9×2.5(L×W×H)
MACHINE WEIGHTT15.7
Hopper CapacityL50
Oil Tank CapacityL750
